Creo Legacy Migration:
Turn 2D Drawings into Beautiful 3D Models!

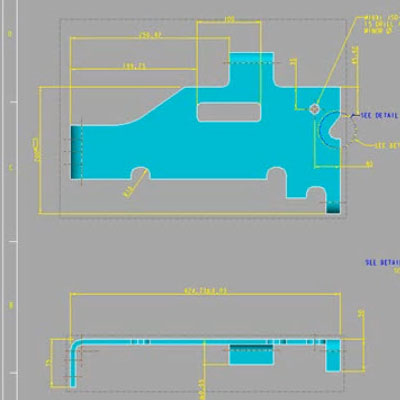

Many companies need to maintain or reuse 3D data from other CAD systems. These 3D models typically have associated 2D drawings. How do you preserve the relationship between the original 3D model and the drawings that are related to it?

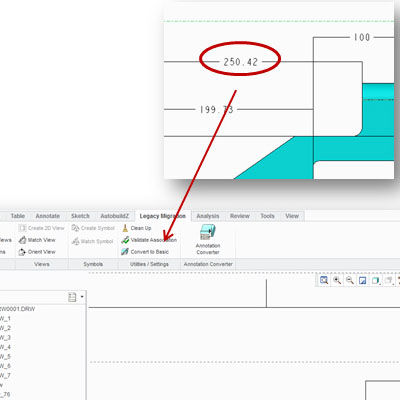

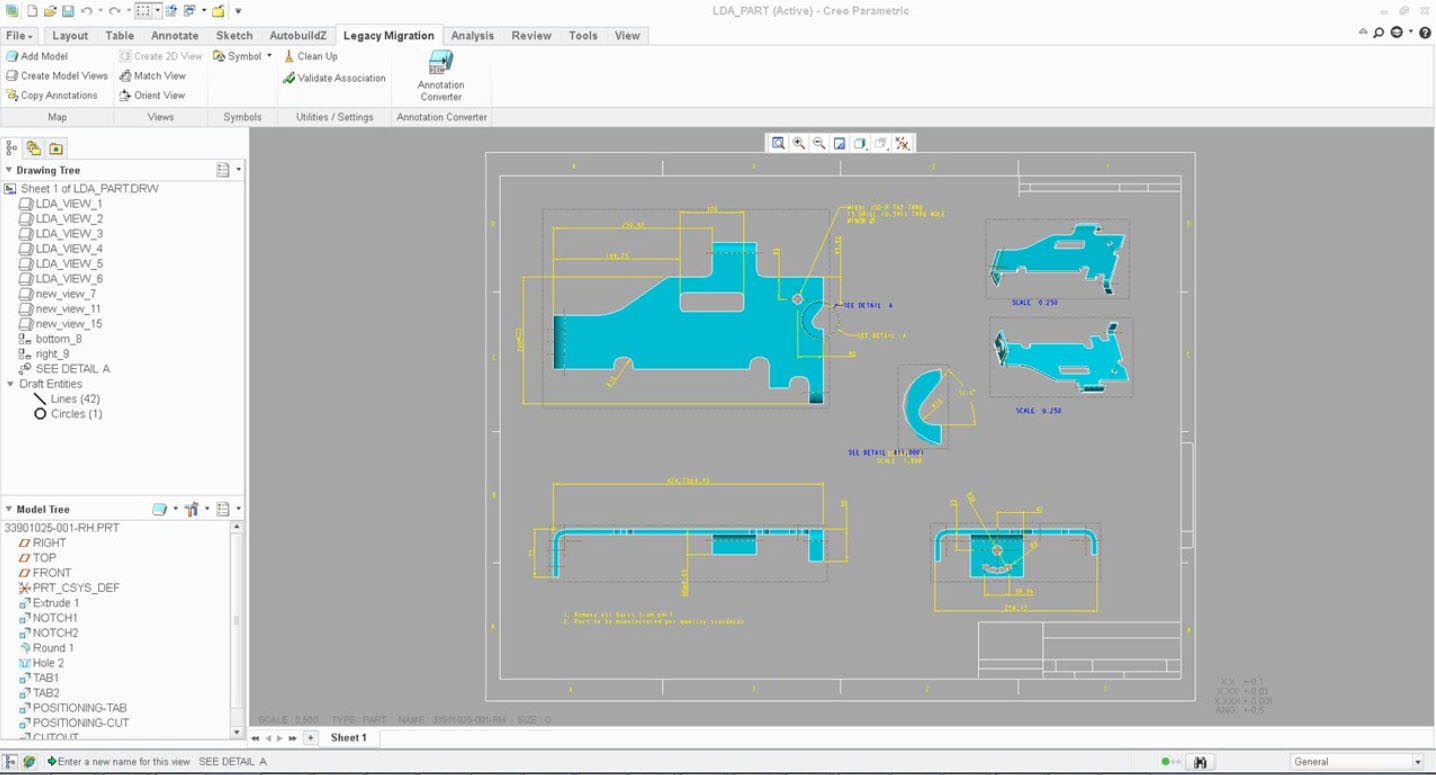

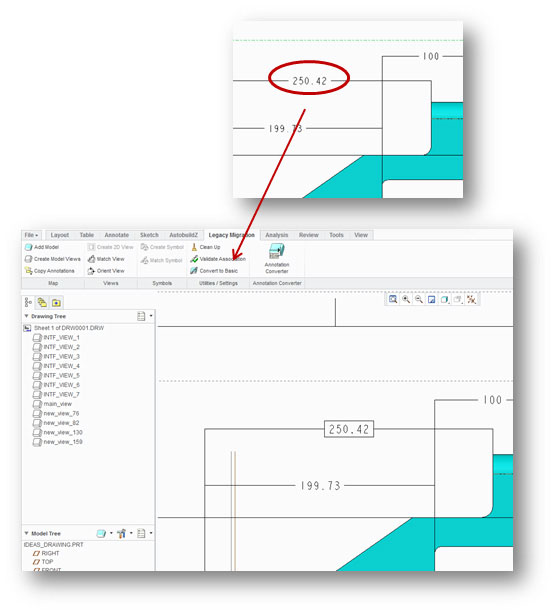

The PTC Creo Legacy Migration Extension (LMX) enables PTC Creo Parametric users to associate 2D drawings to 3D models imported from a 3rd party CAD system.
This extension helps automate the process of mapping and linking the 2D drawings to the 3D model. Put Creo Legacy Migration to work for you.
-
DESIGN STANDARD
DESIGN STANDARD
Creo Parametric is the standard in 3D CAD, featuring state-of-the-art productivity tools that promote best practices in design while ensuring compliance with your industry and company standards. PTC Creo Parametric includes breakthrough capabilities in Additive Manufacturing, IoT, Model-Based Definition (MBD) and Augmented Reality (AR). These capabilities help maximize innovation and quality, to ultimately create exceptional products.
-
CORE PRODUCTIVITY ENHANCEMENTS
CORE PRODUCTIVITY ENHANCEMENTS
With Creo 7.0, you can build better products faster by accelerating innovation, reusing designs, and replacing assumptions with facts. It's design the way it should be. Creo 7.0 focuses on 4 major themes: Modeling and Design, Simulation, Manufacturing, and of course, those Productivity Improvements with Collaboration enhancements.
-
WELL DOCUMENTED
Features
Creo Parametric, Design Smarter Starting Now
Images & Videos
Design Using Creo Legacy Migration
Select Category
-

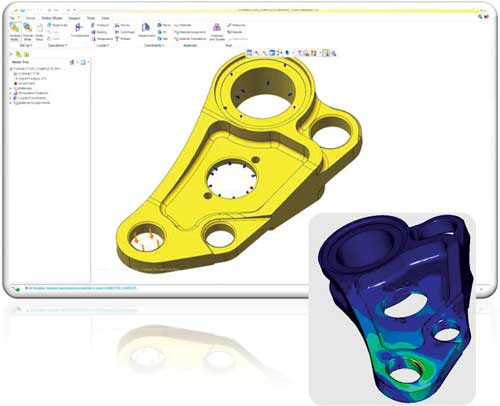

Topology OptimizationDefine the objectives and constraints, and Creo will create the optimized, parametric geometry for you.
-

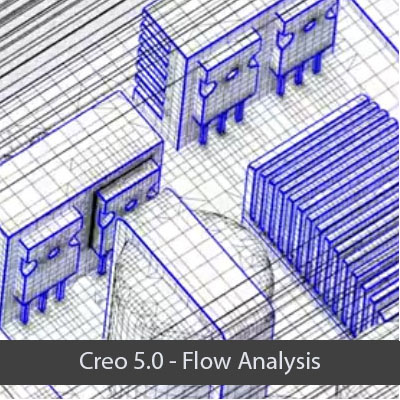

Computational Fluid DynamicsFind and fix issues with liquid or gas flow around your products early in the design process — before you invest in prototypes.
-
Additive ManufacturingCreo 7.0 can print with polymers or metal, with support for Stratasys and 3D Systems plastic printers.
-

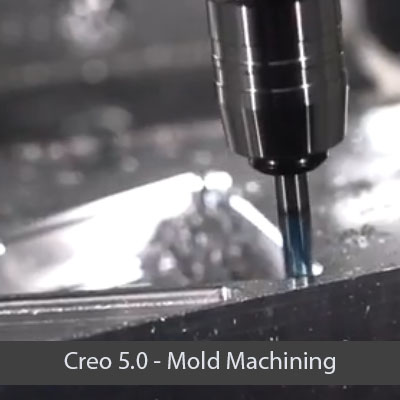

Creo Mold Machining ExtensionMachine complex designs for one-off and low-volume production with ease using high-speed machining tool paths.
-
Volume SweepsCreate accurate 3D representations for parts machined with cutting tools, instead of 2D sweep approximations.
-
-
-
-
-
